What Are PET Preforms? A Complete Guide for Buyers

If you have ever picked up a bottle of water, a soft drink or a bottle of edible oil, you have held the finished form of a PET preform. The preform is the small, heavy, test-tube-shaped piece that a bottle starts life as — and if you are sourcing packaging, it is almost certainly what you are actually buying, not the finished bottle.

This guide explains what PET preforms are, why the industry uses them, how they are specified, and what to look for as a buyer.

What exactly is a PET preform?

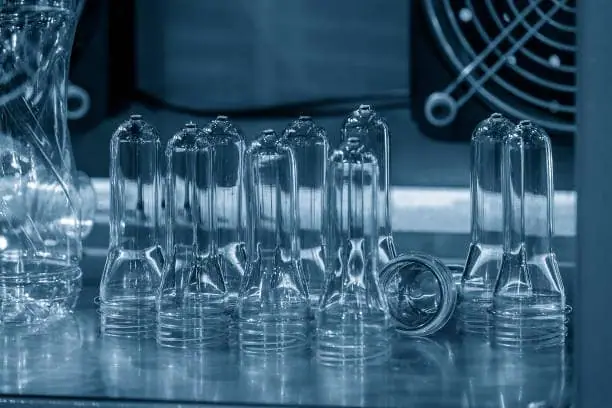

A PET preform is a precisely moulded piece of polyethylene terephthalate (PET) with a finished, threaded neck at the top and a thick, closed body below. It looks like a stubby test tube. The neck — including the threads where the cap screws on — is already in its final shape. The body is deliberately thick and short because it has not yet been stretched into a bottle.

Think of the preform as a bottle in concentrated form. All the plastic that will become a 1-litre bottle is already there in a preform that fits in your palm. When it is later heated and blown, that same material stretches out to form the full bottle without adding or removing any plastic.

Why doesn't everyone just make finished bottles?

Finished PET bottles are mostly air. Shipping them is like shipping empty boxes — expensive and inefficient. Preforms solve this elegantly:

• They ship densely. A truck that carries a few thousand finished bottles can carry many times more preforms, because preforms are compact until blown.
• They store easily. Bottlers keep preforms on hand and blow bottles on demand, right before filling, so they are not storing warehouses full of empty bottles.
• They separate the specialists. Preform manufacturing needs precision injection-moulding tooling and food-grade resin handling. Blowing and filling needs different machinery. Splitting the two lets each side specialise.

This is why the standard model across the beverage and packaging industry is: a preform maker moulds preforms → a bottler blows and fills them. To understand how that blowing step works, see our guide on stretch blow moulding.

The anatomy of a preform

Three parts matter when you specify a preform:

1. The neck finish — the threaded top. This is fixed and never changes during blowing, so it must match your cap and your filling line exactly. Common finishes include PCO 1881, PCO 1810 and 28mm 3-Start (Alaska). We cover these in detail in understanding neck finishes.
2. The body — the thick tube that stretches into the bottle wall.
3. The gate — the small point at the very bottom where molten PET entered the mould.

How preforms are specified: the three numbers that matter

When you order preforms, three specifications do most of the work:

1. Neck finish

The diameter and thread style of the neck (e.g. 28mm PCO 1881). It must match your caps and capping heads. Get this wrong and nothing downstream fits.

2. Grammage (weight)

The weight of the preform in grams determines how much material is available to form the bottle. A heavier preform makes a stronger, thicker bottle; a lighter one saves resin but has less material to work with. For reference, our PET preform range spans roughly 8.45 g for small 200 ml water bottles up to 80 g for 5-litre containers.

3. Blowing capacity

The bottle volume the preform is designed to fill. An 11.6 g Alaska preform is built for a 500 ml bottle; a 17 g one for 1 litre. Matching grammage to the target volume is the heart of good preform selection.

A quick reference: preform to bottle

Preform weight	Typical bottle	Common use
~8.5 g	200–250 ml	Small water cups/bottles
~11.6–12.6 g	500 ml	Water, cold drinks
~17–21 g	1 litre	Water, juice, CSD
~25–34 g	1–2 litre	Water, oil, phenyl
~74–80 g	up to 5 litre	Jars, bulk oil

These are typical starting points. The exact weight for your bottle depends on your fill type, pressure, drop-test targets and design.

What makes a good preform?

Not all preforms are equal. The things that separate a reliable preform from a troublesome one:

• Food-grade virgin resin. For anything touching food or drink, the PET should be food-grade virgin resin — not blended or reground scrap — so clarity, strength and safety stay consistent.
• Tight weight and dimensional control. Consistent grammage and neck dimensions mean consistent bottles and reliable capping.
• No moulding defects. Issues like haze, bubbles, or a crystalline (cloudy) neck cause problems during blowing and filling. See common preform defects for what to watch.
• Correct intrinsic viscosity (IV). The resin grade must suit the application — water, carbonated drinks and hot-fill products each place different demands on the material.

PET preforms vs finished bottles: which do you buy?

If you have your own blowing machine, you buy preforms and blow bottles yourself — maximum flexibility and lowest shipping cost. If you do not, you buy finished bottles. Many businesses do a mix. We explain the trade-offs in PET preforms vs PET bottles.

Sourcing preforms: what to ask for

When you approach a manufacturer, come with:

• Your bottle volume and, ideally, a drawing or sample.
• Your neck finish (or your cap, so it can be matched).
• Your product type (water, CSD, oil, pharma) — this drives resin and weight.
• Any colour requirement (clear, blue tint, amber, custom).

A good manufacturer will translate that into the right grammage and finish for you rather than just quoting a catalogue number.

In short

A PET preform is the moulded starting point of nearly every plastic bottle — a compact, precisely specified piece of PET defined by its neck finish, weight and blowing capacity. Understanding those three numbers is most of what you need to buy preforms confidently.

If you are ready to spec preforms for your product, explore our full PET preform range or send us your requirement and our team in Indore will help you choose.
